Managing Planview.Me views

  1. Last updated
  2. Save as PDF

To implement Planview.Me, you must create at least one Planview.Me view, which is a display container to which you add one or more widgets, for each location where Planview.Me views are displayed.

When you create a view, you first specify a name and description for it, and then add and configure one or more widgets. Widgets contain data from a Planview product, for example, a roadmap view from Planview Roadmaps or work status view from Planview Portfolios.

You can adjust the height and width of widgets within the available space within a section in the designer. Each widget has a minimum and maximum width and height to ensure its contents are displayed properly. Widgets are responsive, which means the number of widgets that are displayed in a row in Planview.Me, and the contents of each widget are automatically adjusted to be displayed according to the available horizontal space.

To add a widget to a view, you drag it from the widget library to the view, where the widgets are organized in sections. The number of widgets that can be dragged into the same section depends on their combined maximum widths. The number of instances of a widget that can be added to a view depends on the data. Widgets that can be configured to display different data or to display the same data in different ways can be added to the view multiple times. Other widgets can only be added to a view once. When the maximum number of instances of a widget have been added to a view, the widget disappears from the library.





Creating Planview.Me views

Creating a Planview.Me view includes the following main steps:

  1. Creating a view and adding and configuring widgets.
  2. Activating the view so that it appears in Planview.Me or Planview Portfolios.
  3. Verifying that the widget and data appear in the view as intended.
  4. Editing the view if required.

NOTE

You must create a Planview.Me view for each location where Planview.Me views are displayed.



To create a Planview.Me view:

  1. In Planview Admin, click Settings and then click the Services tab.
  2. Click the Settings button for the Planview.Me environment that you want to add the view to.

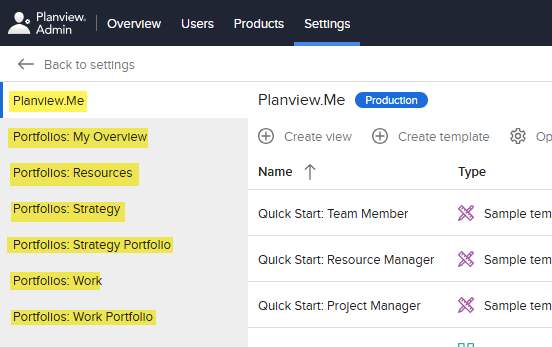

  3. Do one of the following, click the tab that corresponds to the location where the view appears:



    Click to expand or shrink



    • To create a Planview.Me view, click the Planview.Me tab.
    • To create a Portfolios overview view, click the tab for the view location.
  4. Click Create view.
  5. Enter the name and description for the view, and then click Save and Continue. The designer mode appears.



    Click to expand or shrink



  6. Add and configure at least one widget:
    1. Drag a widget from the widget library at the bottom of the view to the working area, A blue horizontal line appears in areas where the widget can be placed.
    2. To configure the widget, see the following procedure.
  7. To add a section title, click Add an optional section title and then enter the title text.
  8. To add a section row, do one of the following:
    • Click the divider line below the existing section.
    • Drag a widget above the divider line below the existing section.
  9. To save the view, click Save.
  10. If you are creating Portfolios overview views, create a view for each of the remaining tabs.



NOTE

Before a view is displayed in Planview.Me, it must be activated. For more information, see the following section.







Configuring Planview.Me widgets

You can do the following when configuring a widget:

  • change the name and description
  • select the options for the data that is displayed in the widget
  • adjust the height and width to ensure the widget is displayed optimally

To configure a Planview.Me widget:

  1. Do one of the following:
    • Click the Configure button on the widget.
    • Click ellipse_vertical_dk_gray.png> Settings.
  2. In the Settings dialog, complete the fields and then click Save.



    NOTE

    For more information about configuring a particular widget, locate the widget article in the Planview.Me widget library.



  3. To adjust the width of a widget:

    1. Point to the space where the vertical divider line appears between the widget and the widget beside it.

    2. When the cursor changes to a two-ended arrow , drag it to the right or left to increase or decrease the width.

  4. To adjust the height of a widget:

    1. Point to the space at the bottom or top of the widget where the horizontal divider line appears.

    2. When the cursor changes to a double line with up and down arrows (), drag the divider line up or down to the desired height.





Activating Planview.Me views

Before a view can be displayed in Planview.Me, it must be activated.



NOTES

  • Before a view can be activated, all widgets in the view must be configured.
  • For Portfolios overview views, only one view can be active at a time.



To activate a Planview.Me view:

  1. Click Settings and then click the Services tab.
  2. Click the Settings button for the Planview.Me environment that contains the view.
  3. In the list, click the view.
  4. In the details panel, click Edit in designer, and then ensure all widgets have been configured.
  5. Do one of the following:
    • In the list, enable the Active option for the view.
    • Click the view in the list, and then click the Active option for the Details pane.

      A message confirms that the view has been made active for all users.





Verifying views

It is good practice to verify that the view appears as expected by accessing the view in Planview.Me or Planview Portfolios.

For more information about accessing Planview.Me views:





Editing Planview.Me views

You can edit the name and description for a view. You can also add, remove widgets, and reconfigure widget settings.

To edit a Planview.Me view:

  1. Click Settings and then click the Services tab.
  2. Click the Settings button for the Planview.Me environment that contains the view.
  3. In the list, click the view. The details panel appears.
  4. Edit the name and description by typing in the fields.
  5. To change widgets, their settings, or layout:
    1. Click Edit in designer.
    2. Edit the widgets as required.
    3. Click Save.
  6. Click Save.

Deleting a Planview.Me view

To delete a Planview.Me view:

  1. Access the view.
  2. Click ellipse_vertical_dk_gray.png> Delete view.
  3. Click Delete to confirm.
