Setting Up Encryption

  1. Last updated
  2. Save as PDF

Release & Verify supports Single Sign On (SSO), a session/user authentication process that allows users to enter one name and password to access multiple applications.

Set Up Encryption

To set up SSO encryption:

  1. Type the following command into PowerShell v5.1 to create a certificate:
    1. PS C:WINDOWSsystem32> New-SelfSignedCertificate -Type SSLServerAuthentication -Provider “Microsoft Strong Cryptographic Provider” -DnsName “demo.plutora.co” -KeyUsage DigitalSignature -KeyAlgorithm RSA -KeyLength 2048 -CertStoreLocation “Cert:CurrentUserMy” -KeySpec KeyExchange -FriendlyName “demo.plutora.co”



      TIP

       DnsName “demo.plutora.co” and -FriendlyName “demo.plutora.co” should be equal address of site.



  2. Export the certificate with the Yes, export the private key radio button selected.
  3. Export the public key and send to the owner of the Federation service.
    The Federation service will use our public key to encrypt responses.
  4. Record the Federation Service URL.
  5. Enable SSO in Release & Verify:

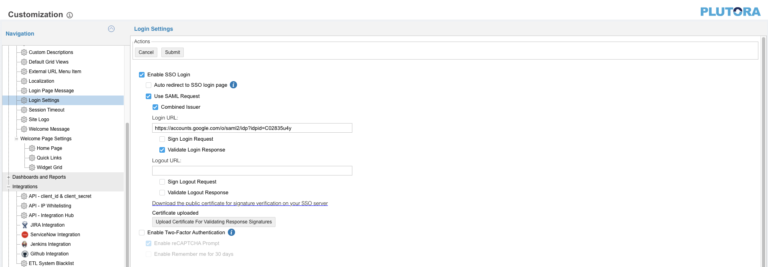

    1. Go to Settings  > Customization > Login Settings in Release & Verify.
    2. Click to select the Encrypt SSO checkbox.
    3. Click Upload SSO Certificate.
    4. Select the saved certificate and click Open or Upload.
    5. Click to select the Sign SSO request checkbox.
    6. Type the Federation Service URL.
    7. Click Submit.
  6. To work correctly, the Federation Service should return this attribute:
    1. <saml:NameID Format=”urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress”>user@email.com</saml:NameID>
    2. <saml:Attribute Name=”Given-name” NameFormat=”http://schemas.microsoft.com/LiveID/...ration/2008/05″>     <saml:AttributeValue xsi:type=”xs:string” xmlns:xs=”http://www.w3.org/2001/XMLSchema” xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance”> Given-name </saml:AttributeValue>   </saml:Attribute>
    3. <saml:Attribute Name=”Surname” NameFormat=”http://schemas.microsoft.com/LiveID/...ration/2008/05″>     <saml:AttributeValue xsi:type=”xs:string” xmlns:xs=”http://www.w3.org/2001/XMLSchema” xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance”> Surname </saml:AttributeValue>   </saml:Attribute>
