Manage Builds in System

Introduction

You add or edit Builds to the System in the Recent Builds section in the Systems pop-up. This article provides a brief overview of the steps to add/edit Builds to the Systems manually and via automated jobs. See Builds for more information.

Pre-requisite

You must have the following user permissions:

• Create Builds
• Edit Builds
• Delete Builds

Ensure that Enable Builds is selected in Build Setup.

Navigation

Environment > Systems

Access ‘Recent Builds’ section

To access the Recent Builds section:

1. Navigate to the ‘Systems’ page.
2. Search for the System in which you want to add/edit the Builds. You can use the filter options available on this page.
3. Open the System by clicking on the System Name.

The Systems pop-up displays. Scroll down to the ‘Recent Builds’ section. The existing Builds that are added to the System, if any, are displayed here.

Add a Build Manually

Builds created manually have fewer fields and can be added via Systems or via the Builds grid.

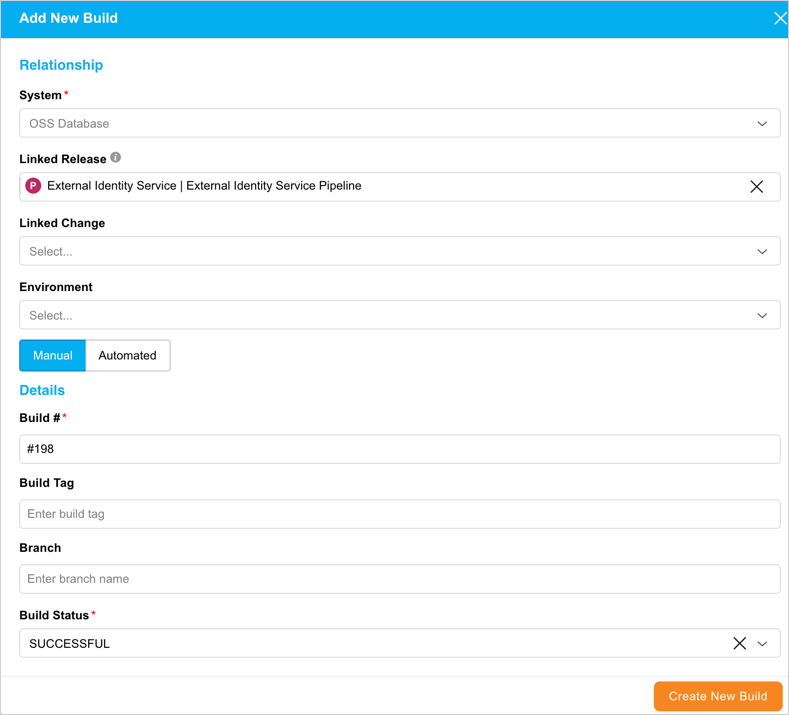

To add a Build click . ‘Add New Build’ pop up displays:

After making the entries, click .

The new Build displays in the ‘Recent Builds’ section.

Add Build using Automated Jobs

To add Jenkins jobs to Builds from a System:

Fields	Description
System	Grayed out, with the current System or Subsystems selected
Linked Release	Linked Releases available for selection are: Active. In other words, not Completed or in an end state. Linked to the selected System or Subsystems. If a parent Enterprise Release is selected, the child Releases will also be displayed. If a child Release is selected, the parent Release will not be displayed.
Linked Change	Linked Changes available for selection are: Linked to the selected System or Subsystems.
Environment	Environments that are linked to the System or Subsystems are available for selection.
Build Instance	For Subsystems only, select the build instance to replace or create a new one and update the build note
Manual/Automated	Select Automated
Automated Jobs	Select the checkboxes of Automated Jobs (sourced from Jenkins or Integration Hub).
Parameters	Select Parameters: Click  and select or type the parameters. If default parameters were set, their values can be edited at this point but new parameters cannot be added.

After making the entries, click .

The new Build displays in the ‘Recent Builds’ section.

Click  on the Systems pop-up.

View Build Details

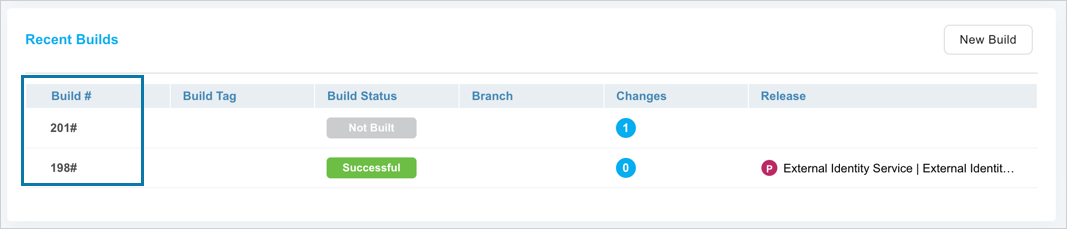

The ‘Recent Builds’ section loads the 25 most recent Builds for the System. The Build Status updates in real-time when a Build is run.

To see all the Builds for this System, go to Environment > Builds and filter by System.

Edit Builds

To edit Builds, click Build # to open the ‘Builds’ pop-up and update the Build details as required. For more information, see Add/Edit Builds.
